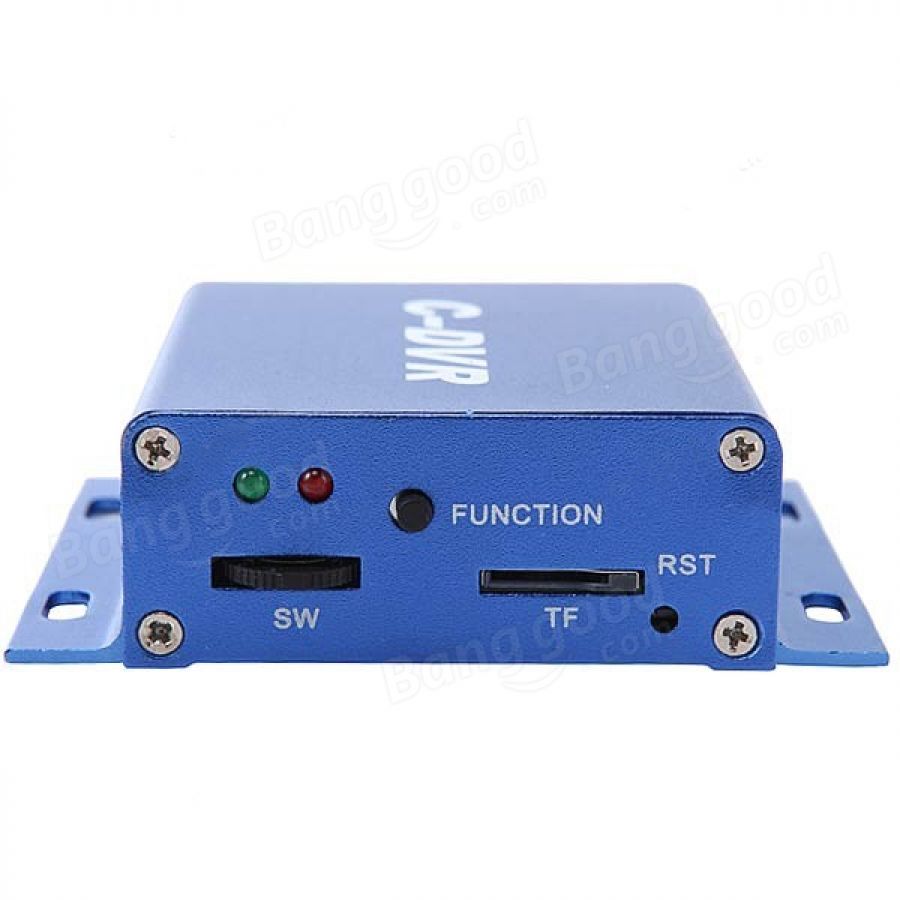

1 Channel Mini C-DVR



1 Channel Mini C-DVR in Pakistan



Security Digital Video Recorder Super Mini C-DVR 1Channel Micro SD TF Card Video/Audio CCTV DVR Recorder Hidden Motion Detection in Pakistan



The product is a real time super-mini single-camera DVR with the function of motion detection, which can be connected to analog CCD or CMOS cameras/ h-idden camera/ s-py camera of various appearances in any way . Forget about tons of wires and easily install and connect this DVR to your security camera.

This C-DVR include multiple functions,such as Continuous Video Recording, Motion Detection Recording, Mixing Recording and Audio Recording.

The mini dvr can record sound if you connect a microphone(not included) to it, so as to compensate for the defect of non-pickup in ordinary cameras. Video files have of function of auto cycle overlay. The product has one channel of video/Audio input and one channel of video/Audio output. The Video/Audio signal are saved in TF card, and video output can be connected to monitor and playback frommonitor or PC. As an extra we throw in 2 Free BNC to AV connectors for added compatibility with surveillance cameras.

It is an ideal choice for the user with small size,powerful function, reasonable price and easy to install and operate.

This product is applicable in different places, such as villas, dwelling house, stores, hotels, small market, warehouse, offices, BTS stations, etc.



This mini dvr supports 3 recording modes:

1)       Continuous Recording (C):  No matter there is a movement or not, it will keep recording all the time. This mode is suitable for some important places.

2)       Motion Dectected Recording (M):  The recording will be actived only when there is a movement, and recording will stop automatically once the movements finished.

3)       Mixing Recording (I):  When there is a movement the dvr will start recording and keeping recording, when movements finished and no any movements,the dvr will record 1 frame per second.





Features:

·                  Super mini size DVR recorder, you can hide it in any small corner place.

·                  With one video/Audio in Port, one video/Audio out.Port, AVI Image compression.

·                  Recording mode: Motion Detected Recording / Continuous Recording/ Mixing      Recording

·                  Support video recording through Max 32GB TF/Micro SD cards. (not included)

·                  Support Local Storage/Loop Video Recording, the memory will auto re-write when full.

·                  Resolution adjustable 640 x 480 (VGA) / 320 x 240 (QVGA)

·                  Support DVR Menu Settings by wheel(SW) on monitor

·                  Support Video Playback function from monitor. You can also connect TF card with your PC and playback from PC.

·                  Compact and lightweight, easy to install and connect.

·                  2 Free AV RCA Male to RCA Male Connectors, and 2 Free AV RCA Male to BNC Male Connectors.

·                  Powered by: DC 12V (Power adapter not include)

·                  Color: Blue

·                  Material: Aluminium alloy

·                  Size: 83 x 65 x 25mm(L x W x H) ; NW: 120g

Package Include:



·                  1 x Super Mini C-DVR (Power adapter not include)

·                  1 x CD Driver & Manual

·                  2 x A/V cable
